The SHIMANO disc brake bleed kit contains everything you need to fill SHIMANO disc brakes on road bikes and mountain bikes with mineral oil and to remove air bubbles from them.
This is a quick and easy job with the combination of SHIMANO components TL-BR001 / TL-BR002 / TL-BR003 and the spacers for all common SHIMANO brake calipers. The fitting spacer is installed between the brake caliper pistons when bleeding your disc brakes with dismantled brake pads.
When filling and bleeding SHIMANO road and MTB disc brake systems, the screw-on attachment serves as a filling and expansion reservoir for the filled mineral oil. The oil stopper can be hooked into the funnel ring when open and plugs the fill opening with its seal after use to ensure for clean working.
After use, the funnel can be placed on the base to prevent it from tipping over. The filling syringe for mineral oil comes with an unscrewable transparent hose. The hose ensures an airtight connection between the syringe and the bleed boss on the brake caliper and can be closed with the clip to prevent leakage.
Details:
Professional bleed kit for bleeding and filling with mineral oil
For hydraulic SHIMANO road / MTB bike disc brakes with one-way bleeding
Filling syringe with screwed hose connection
Hose clip for easy disconnection of the hose
Suitable for bleeding nipples and bosses
Expansion and filling funnel for SHIMANO ST or BL brake levers
Precisely fitting M5 or M7 screw connection with seal
Oil stopper with seal to close the funnel outlet
Practical locking holder
Funnel base holds the funnel after use
4 spacers for common SHIMANO brake calipers
Technical details:
Material: rubber, metal
Weight: approx. 155 g

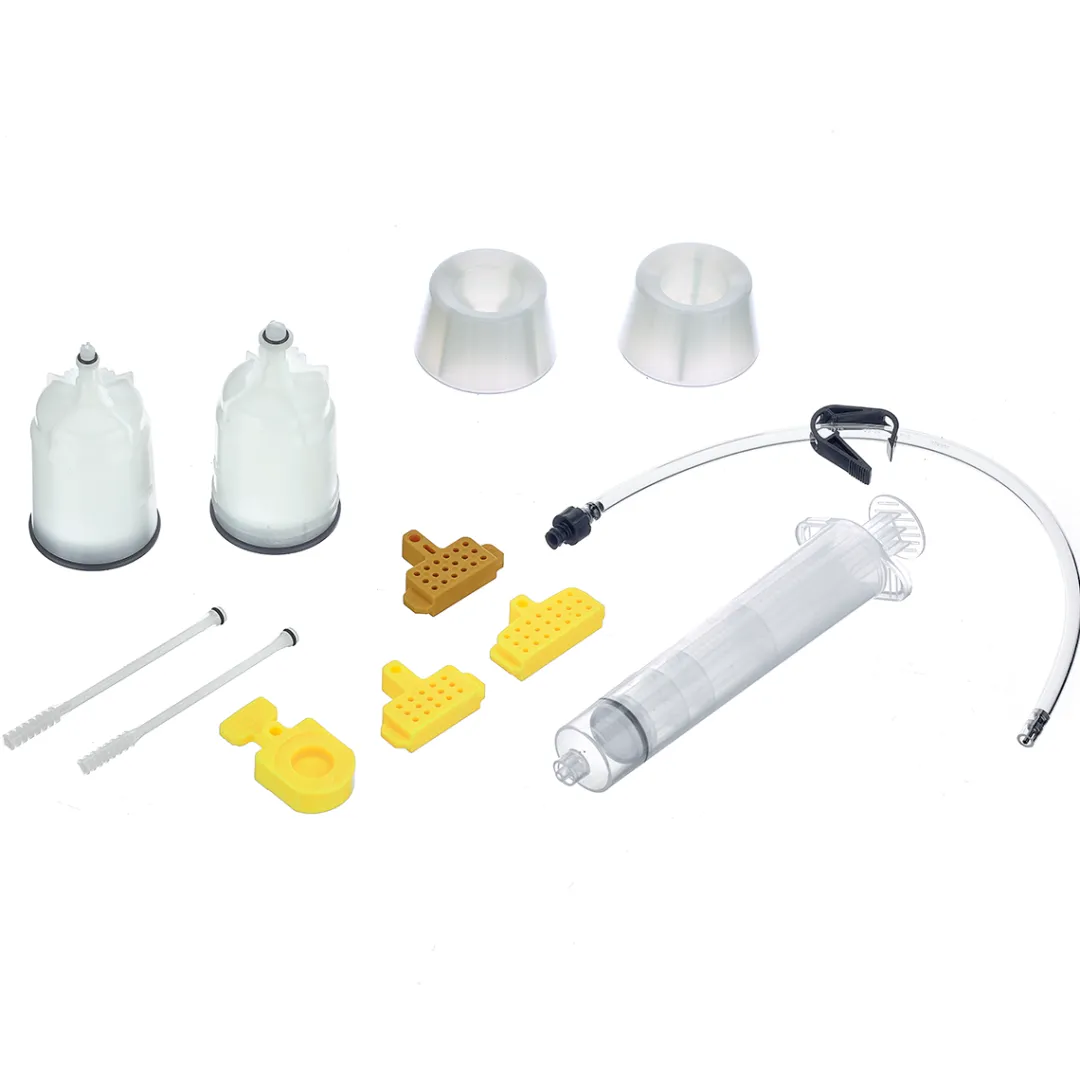

In the box:
1 x TL-BR001 filling syringe with hose
1 x TL-BR002 oil funnel with oil stopper (for shift/brake lever, M7 thread)
1 x TL-BR002 oil funnel with oil stopper (for brake lever, M5 thread)
2 x base for oil funnel
1 x Bleed Block spacer for 4-piston brake caliper (BR-M810)
1 x Bleed Block spacer for 2-piston brake caliper (BR-M615)
1 x Bleed Block spacer for 2-piston brake caliper (BR-M575)
1 x Bleed Block spacer
Attention:
Mineral oil for filling the brakes is NOT included in the set. SHIMANO SM-DB-OIL mineral oil can be found with prod. code 553315.
Tip:
A replacement SHIMANO filling and bleeding syringe can be found with prod. code 2316825. The M5 oil funnel for SHIMANO BL-MTB/hybrid brake levers is available with prod. code 2316827, an M7 replacement funnel for SHIMANO ST shift/brake levers on road bikes can be found with prod. code 2316826.
Compatibility bleed blocks (extract):
15 hole:
SHIMANO DEORE BR-M6000
SHIMANO DEORE BR-M615
SHIMANO Alfine BR-S7000
18 hole:
SHIMANO SLX BR-M675
SHIMANO DEORE BR-M615
SHIMANO Alivio BR-M4050
SHIMANO Acera BR-M395
SHIMANO Acera BR-M365
SHIMANO Acera BR-M3050
SHIMANO Acera BR-MT200
SHIMANO Altus BR-UR300 (Flatmount)
SHIMANO Altus BR-M315
SHIMANO BR-MT500
SHIMANO BR-M575
SHIMANO BR-M486
SHIMANO BR-M485
SHIMANO BR-M447
SHIMANO BR-M446
SHIMANO BR-M445
SHIMANO BR-M355
21 hole:
SHIMANO XTR BR-M9120
SHIMANO XT BR-M8120
SHIMANO XT BR-M8020
SHIMANO SLX BR-M7120
SHIMANO SAINT BR-M820
SHIMANO SAINT BR-M810
SHIMANO ZEE BR-M640
SHIMANO BR-MT520
SHIMANO BR-MT420
