ROSE Bikes TS-2.3 Pro Truing Stand| Bike Tools

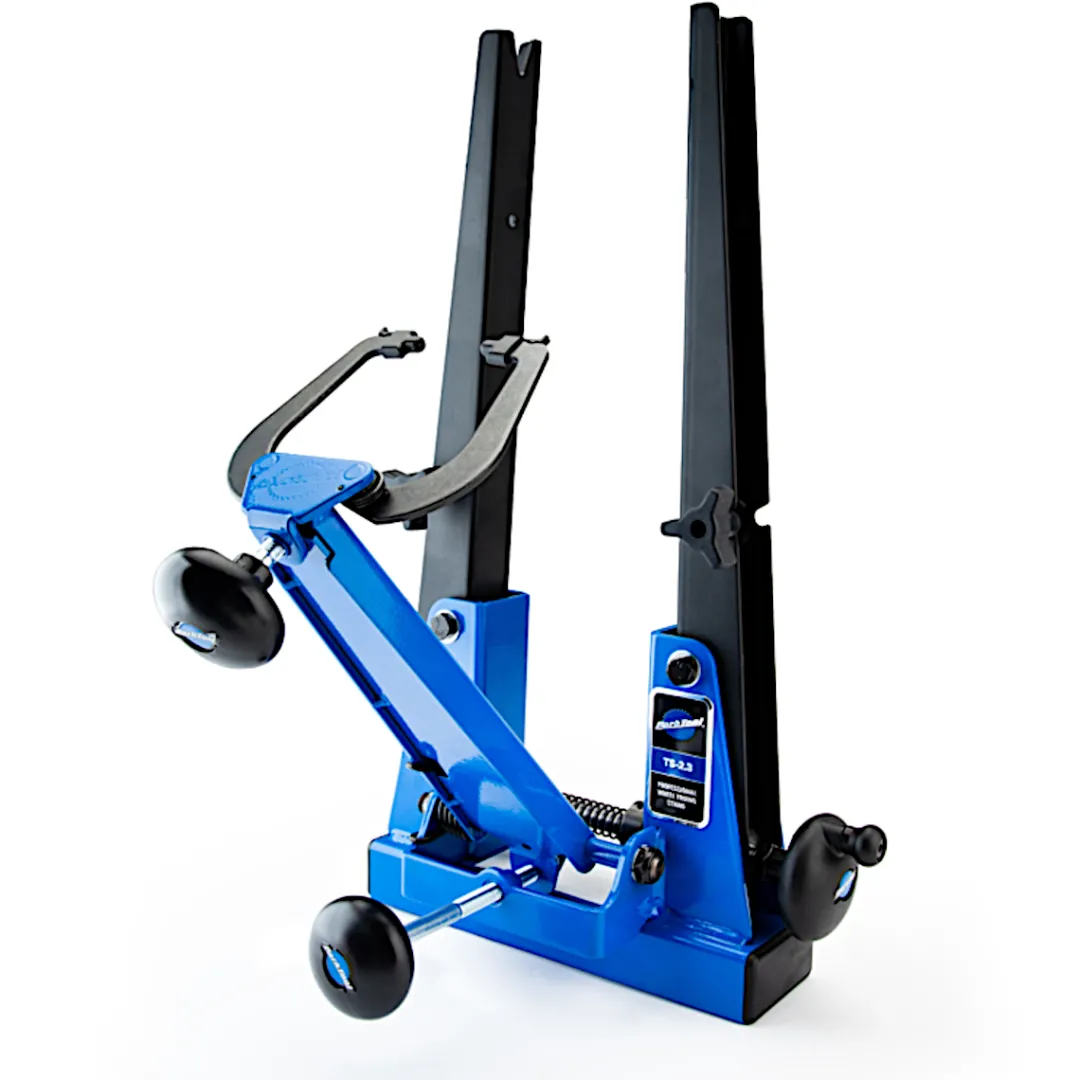

For over 50 years, Pro truing stands from Park Tool have been found in bicycle workshops all over the world. There’s a good reason the optimised TS-2.3 Pro is a good choice for professional mechanics that need to centre wheels. The TS-2.3 has a solid design perfect for long-term daily use in the workshop and mechanic’s workshop and can accommodate all common wheels from city and trekking bikes, BMX and mountain bikes to gravel and road bikes. Of course, pedelecs and e-bikes can also be used.

Whether the bikes have disc brakes, streamlined aero rims or oversized MTB tyres – the TS-2.3 Pro from Park Tool can clamp them all. The professional version convinces with high precision and stability. It is easy to adjust and precisely set by with easy to grip knobs. Synchronously pivoting impeller holders with automatic centre alignment, plus the spring-mounted adjustment tongs make the TS-2.3 extremely versatile and user-friendly. The truing stand is compatible with quick-release axles and all common hub diameters for thru axles via the supplied axle adapter.

Details:
Robust design made of heavy, powder-coated steel
Synchronously pivoting support arms for wheel sizes from 16″ to 29″+ (without/with tyres)
Compatible with wheels that have quick release, solid and hollow axle hubs
Automatic centre positioning of the hub up to 200 mm width
Incl. integrable TS-2TA.2 thru axle adapter for 9, 10, 12, 15 and 20 mm
Quick clamping of wheel with crank knob
Comes already centred and true
Easy to use, precisely adjustable
Lateral and radial truing possible

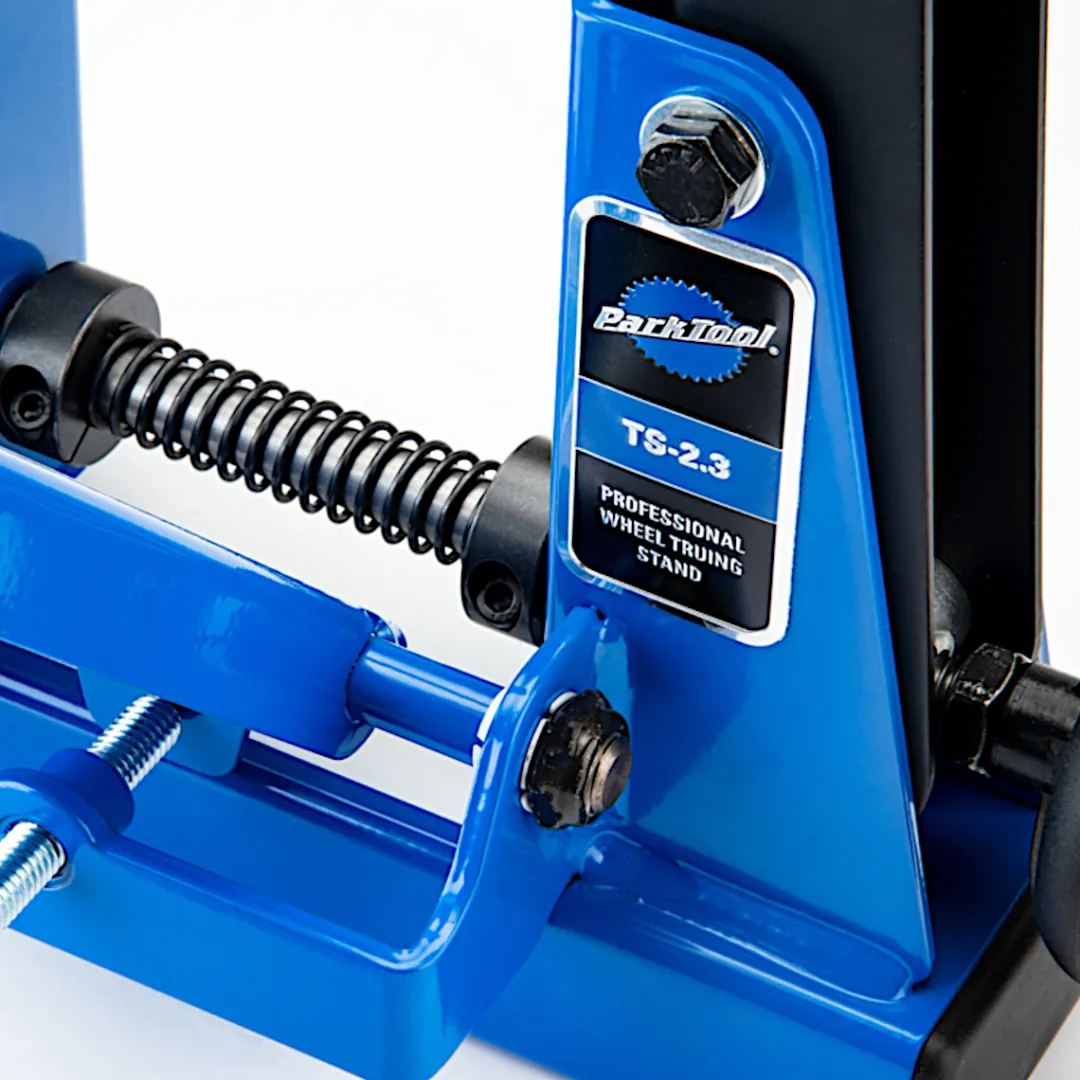

Caliper arm spring keeps the wheel running smoothly
Replaceable plastic measuring probes to protect the rim flanks
Stiffened U-profiles and solid mechanics for optimum repeat precision
Adjustable and retrofittable for many years of use
Base support for screwing to the workbench or for clamping in the vice
Made in the USA

Technical details:
Wheel sizes: 16″ to 29″+
Hub width: approx. 75 to 200 mm
Rim width: max. approx. 102 mm (4″)
Dimensions: approx. 30.5 x 46 x 15 cm
Depth of support base: approx. 76 mm (for vice clamping)
Workbench assembly: 2 screw holes Ø 9.5 mm, spacing 200 mm
Material: tool steel, plastic
Weight: approx. 6.8 kg

Tip:
With the Park Tool TS-TA thru axle adapter for truing stands (prod. code 32637301) you can insert wheels with 12 mm, 15 mm and 20 mm hollow axles directly into the V-prism mount of the truing arms and do not need to clamp them via the clamping adapters.

Attention:
The truing stand has an automatic centre adjustment and is centred ex works. This setting can shift after intensive use, but also by lateral force acting on the arms of the truing stand. Due to different hub shapes and/or wear on the end caps of the wheel hubs, the indicated centricity may be inaccurate. Use a centring gauge, such as the ROSE centring gauge (prod. code 2328849) for precise centring and for the final fine-tuning of the wheel.
