ROSE Bikes Ultegra FC-R8000 chainring| Chainrings

Shimano Ultegra double/11-speed chainring for Ultegra FC-R8000 crankset.

Versions:

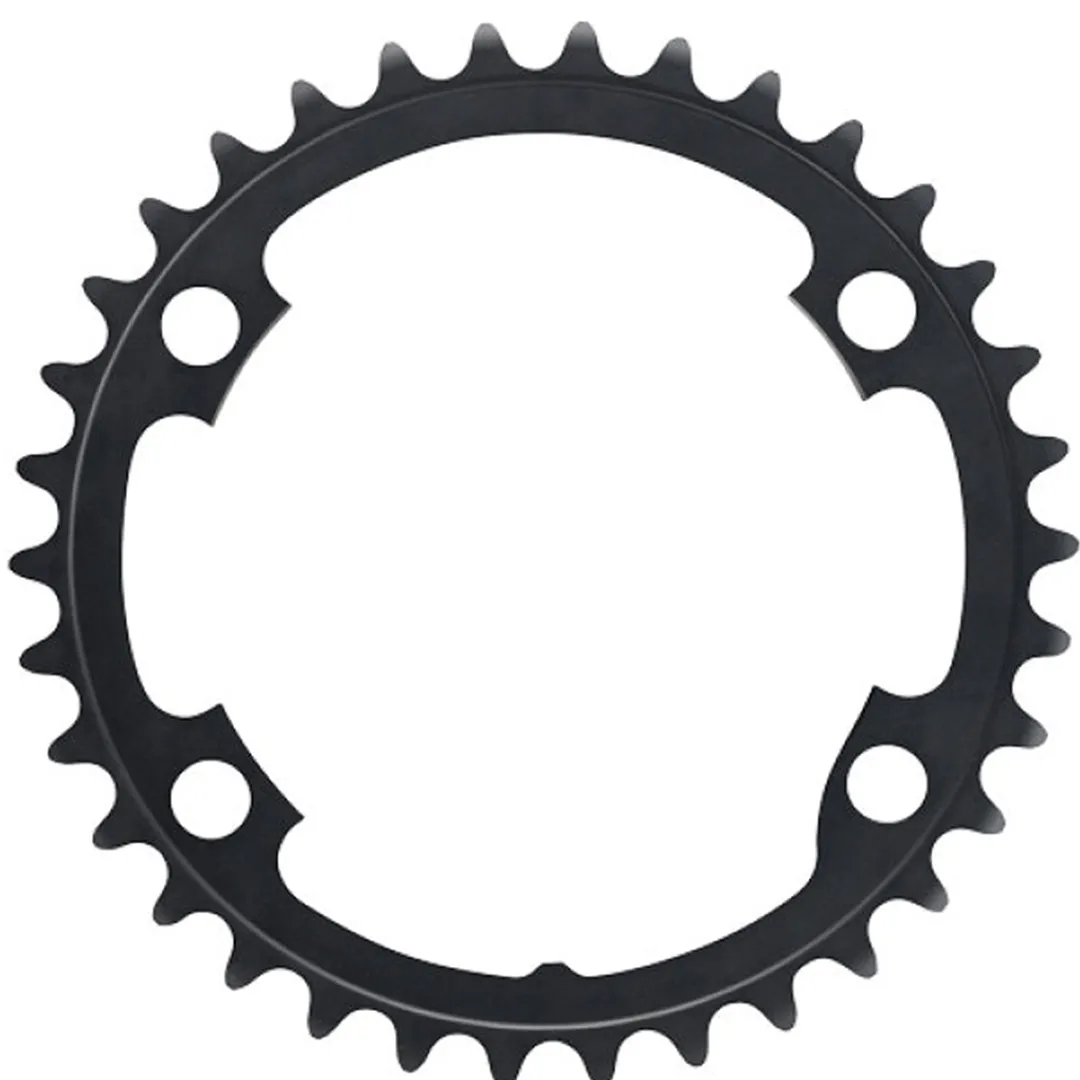

Number of teeth: 34 teeth (for 50 teeth)
Bolt circle Ø: 110 mm
Type: MS
Material: anodised aluminium
fits Ultegra FC-R8000 double/11-speed crankset

Number of teeth: 36 teeth (for 52 or 46 teeth)
Bolt circle Ø: 110 mm
Type: MT
Material: anodised aluminium
fits Ultegra FC-R8000 double/11-speed crankset

Number of teeth: 39 teeth (for 53 teeth)
Bolt circle Ø: 110 mm
Type: MW
Material: anodised aluminium
fits Ultegra FC-R8000 double/11-speed crankset

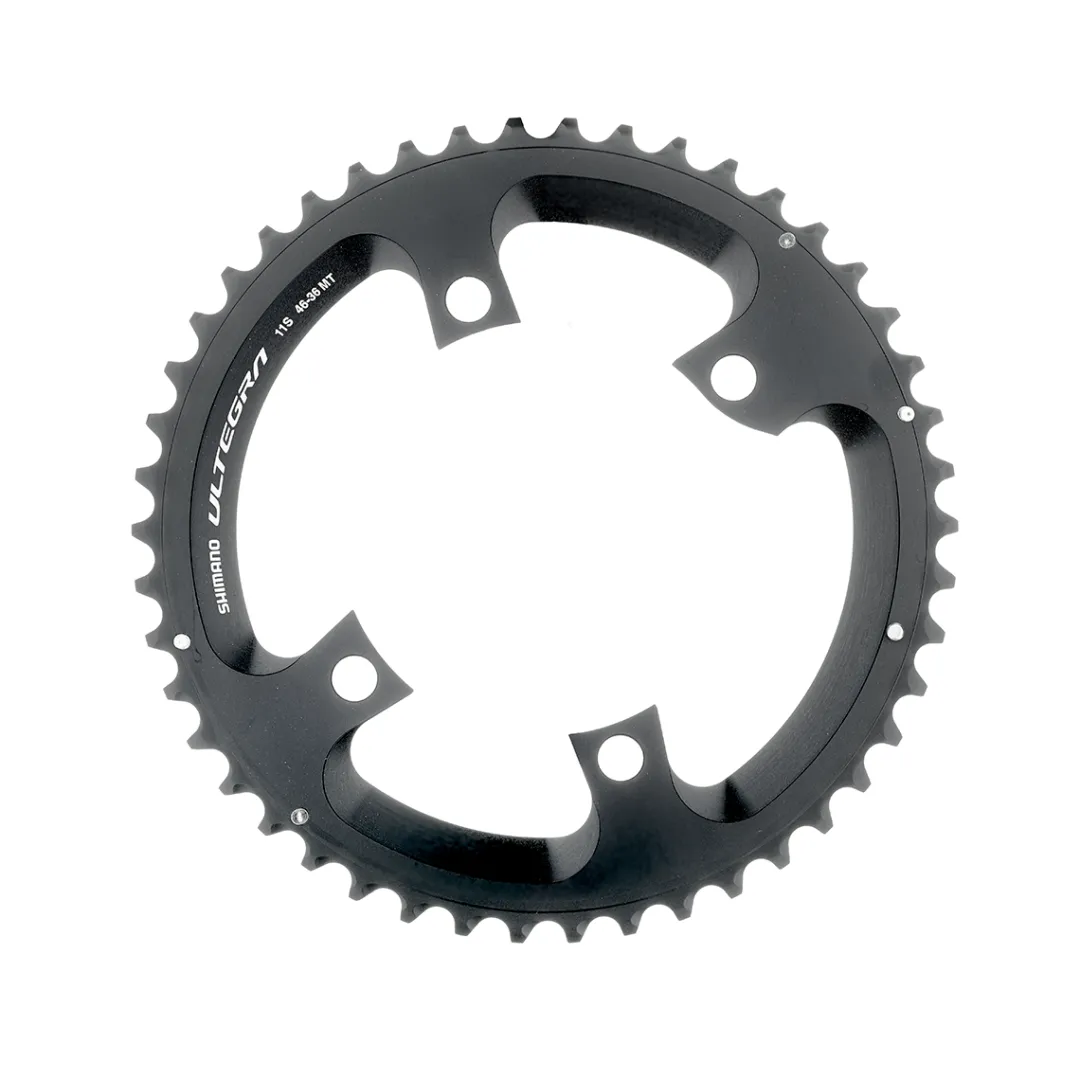

Number of teeth: 46 teeth (for 36 teeth)
Bolt circle Ø: 110 mm
Type: MT
Material: anodised aluminium
fits Ultegra FC-R8000 double/11-speed crankset
(Please note If not existing, SHIMANO chainring bolts with cover nuts are required (prod. code 2274816))

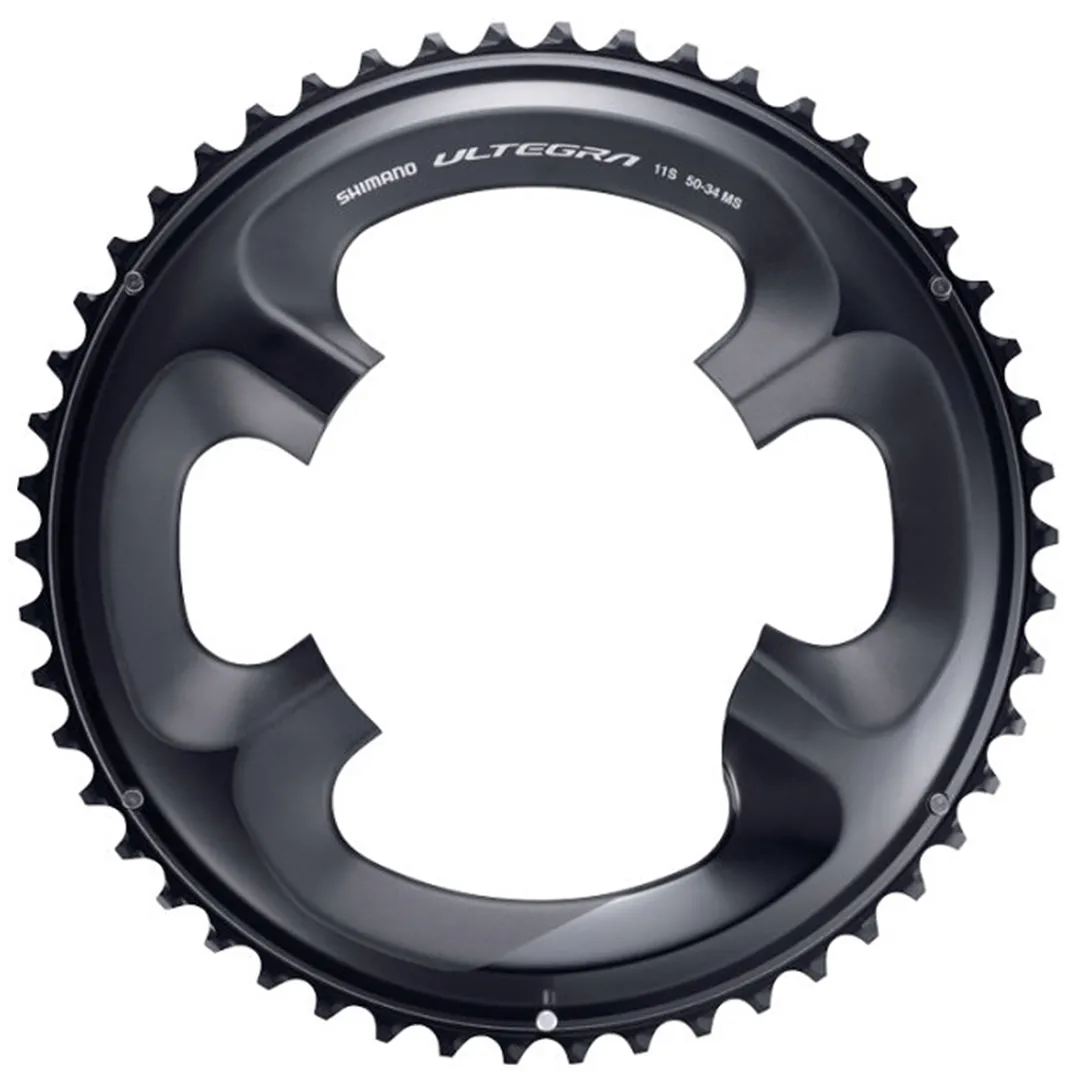

Number of teeth: 50 teeth (for 34 teeth)
Chain lifters for optimum shifting performance
Bolt circle Ø: 110 mm
Type: MS
Material: aluminium, carbon fibre reinforced plastic
fits Ultegra FC-R8000 double/11-speed crankset

Number of teeth: 52 teeth (for 36 teeth)
Chain lifters for optimum shifting performance
Bolt circle Ø: 110 mm
Type: MT
Material: aluminium, carbon fibre reinforced plastic
fits Ultegra FC-R8000 double/11-speed crankset

Number of teeth: 53 teeth (for 39 teeth)
Chain lifters for optimum shifting performance
Bolt circle Ø: 110 mm
Type: MW
Material: aluminium, carbon fibre reinforced plastic
fits Ultegra FC-R8000 double/11-speed crankset

Note:
To guarantee best shifting performance, you may only combine chainrings of the same type, e.g. MS!
