ROSE Bikes VIEWIT Front Luggage Rack| Front Racks

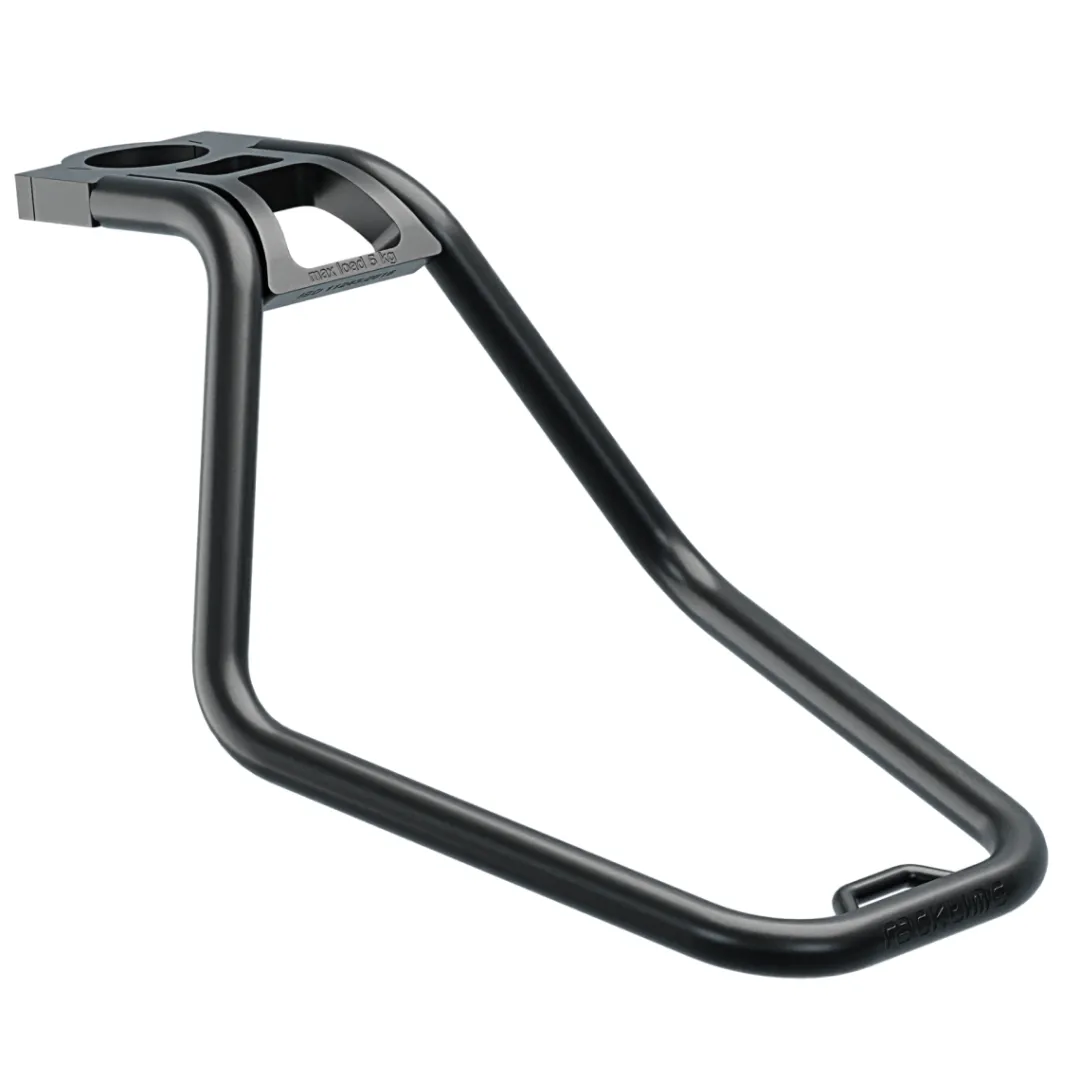

If you are looking for a minimalist and lightweight front rack for steerer tube mounting, the VIEWIT from racktime is an excellent choice.

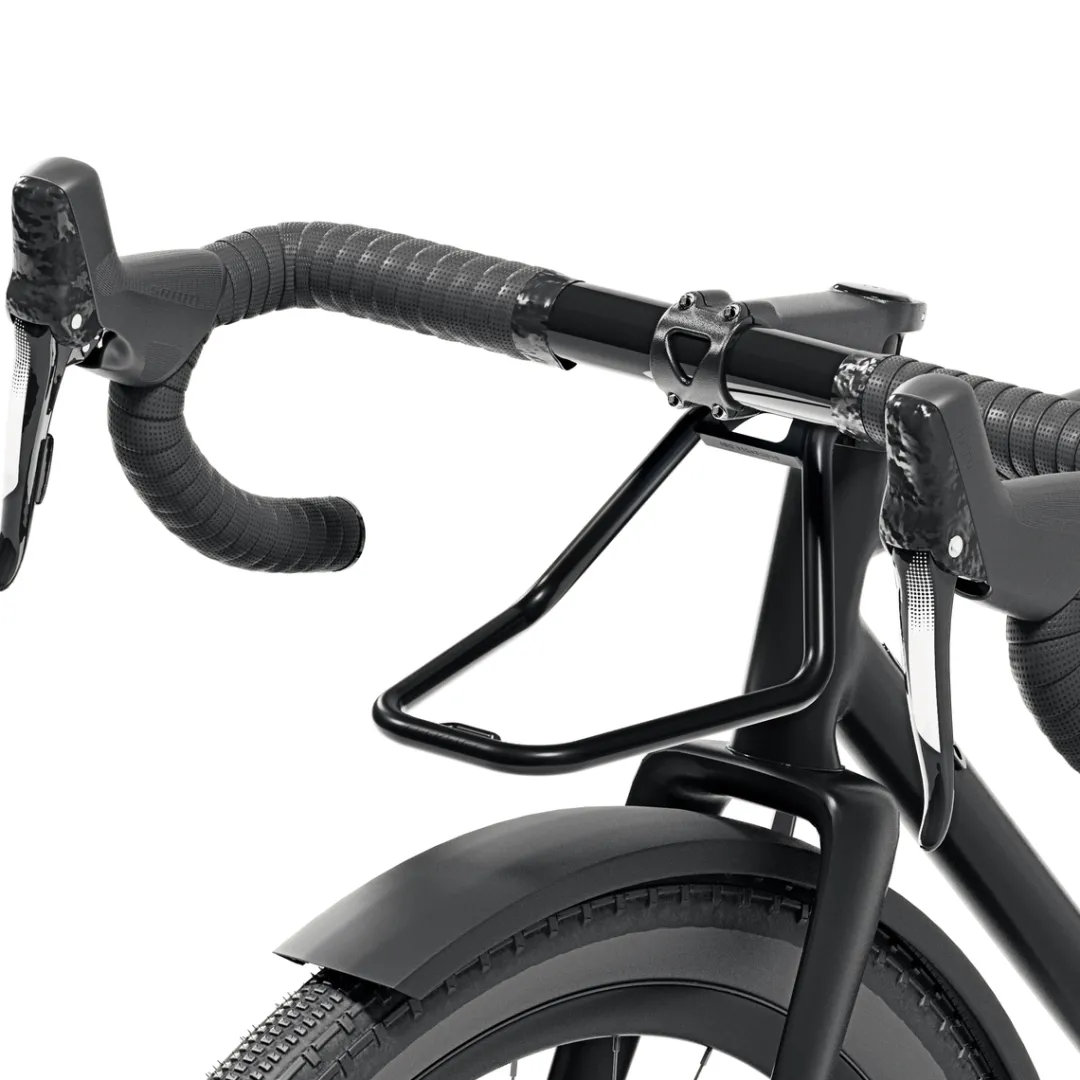

Smaller items such as a sleeping mat, tent or sleeping bag can be securely lashed to the luggage platform in no time at all and removed just as quickly at your destination. Installing the VIEWIT is also quick and simple. The front rack is simply clamped to the 1 1/8″ steel or aluminium steerer tube of your bike. The only requirement is a 10 mm high clamping surface below the stem.

Details:
Minimalist front carrier for mounting on 1 1/8″ steel or aluminium steerer tubes
Ideal for transporting smaller items of luggage
Simple and quick lashing of sleeping bag, tent etc. using optional tensioning strap (see below)
Up to 5 kg load possible with only approx. 185 g net weight
Easy and simple clamp attachment (10 mm high steerer tube clamping surface required, replaces a spacer)

Technical details:
Material: Aluminium
Max. load 5 kg
For steerer tube diameter: Ø 1 1/8“
Compatible steerer tube materials: aluminium, steel
Tube diameter: Ø 12 mm
Luggage platform dimensions: approx. 128 mm (length) x 150 mm (widest point)
Weight: approx. 185 g

In the box:
1 racktime VIEWIT front luggage rack
2 star-shaped mounting bolts M5 x 16 mm

Compatible racktime accessories at ROSE:
Racktime BINDIT Adjustable tensioning strap (prod. code: 2349601)
Tubus PU paint protection film set (prod. code: 2279890)

Note:
Not suitable for installation on carbon steerer tubes.
To mount the VIEWIT, a 10 mm high steerer tube clamping surface is required below the stem. The clamp attachment of the front luggage carrier replaces one or more spacers with a total height of 10 mm.
Please follow the manufacturer’s installation instructions. racktime recommends installation by trained specialists.

Note:
Incorrect installation may lead to serious accidents!
