ROSE Bikes Z.1 Folding pedal| City And Touring

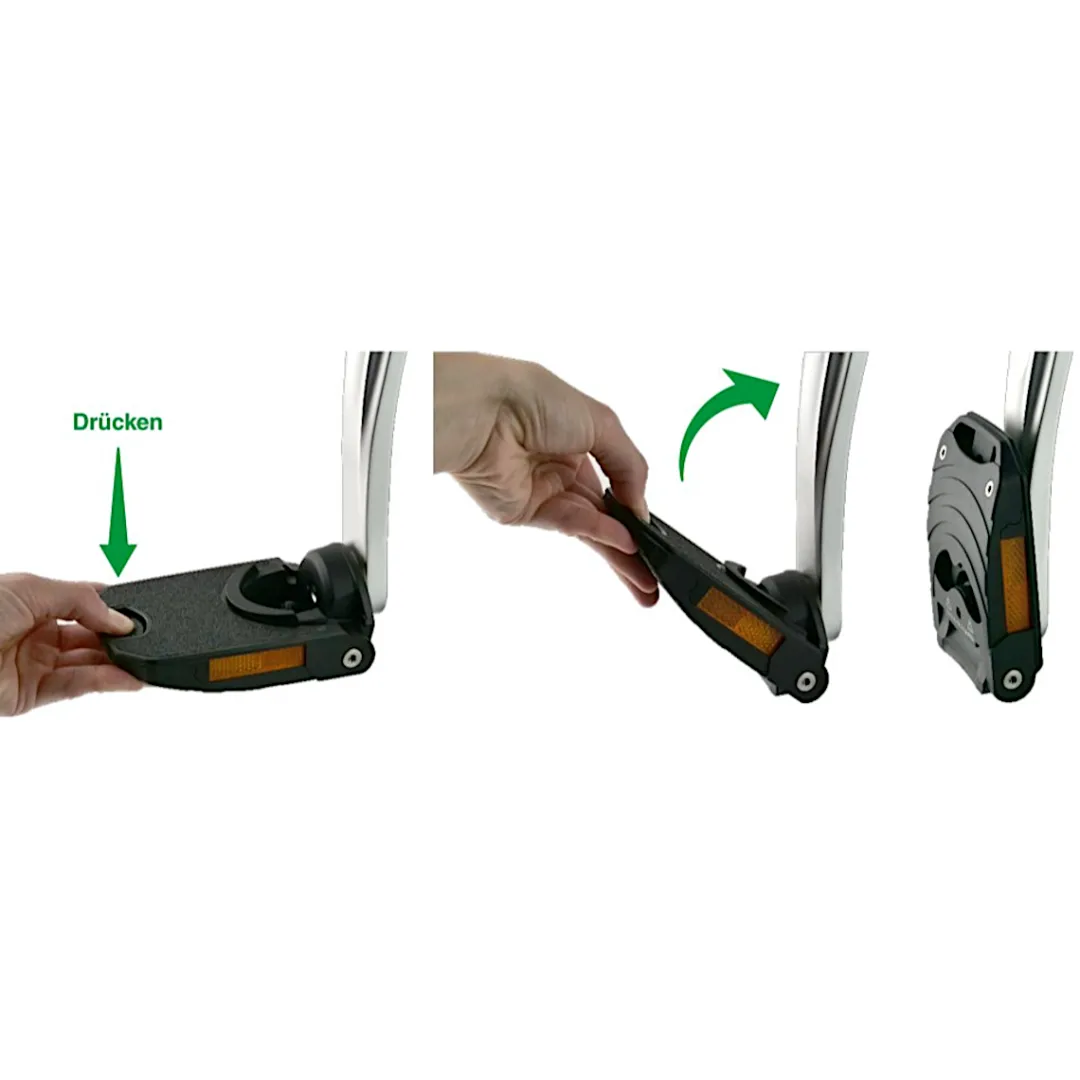

Anyone who frequently transports their bike in the car or on a bike rack knows how annoying pedals can be. This is exactly where the Z.1 foldable pedal from by,schulz comes to the rescue. Primarily designed for compact bikes, the platform pedal can be easily folded upwards onto the crank at the touch of a button. Thanks to the ingenious mechanism of the solid aluminium construction, the folding pedal is very easy to operate and also securely protected against accidental folding while riding. As the pedalling surface does not build up towards the axle, the crank length on your bike can be fully used for efficient riding.

Details:
Intended use: Folding bike, city, hybrid and e-bike (pedelecs and S-pedelecs up to 45 km/h)
Approved rider’s weight: max. 150 kg (tested according to DIN EN 4210)
Compact folding on crank arm
Easy, intuitive handling
Folding safety catch with integrated release button
Forged aluminium body with large central bearing

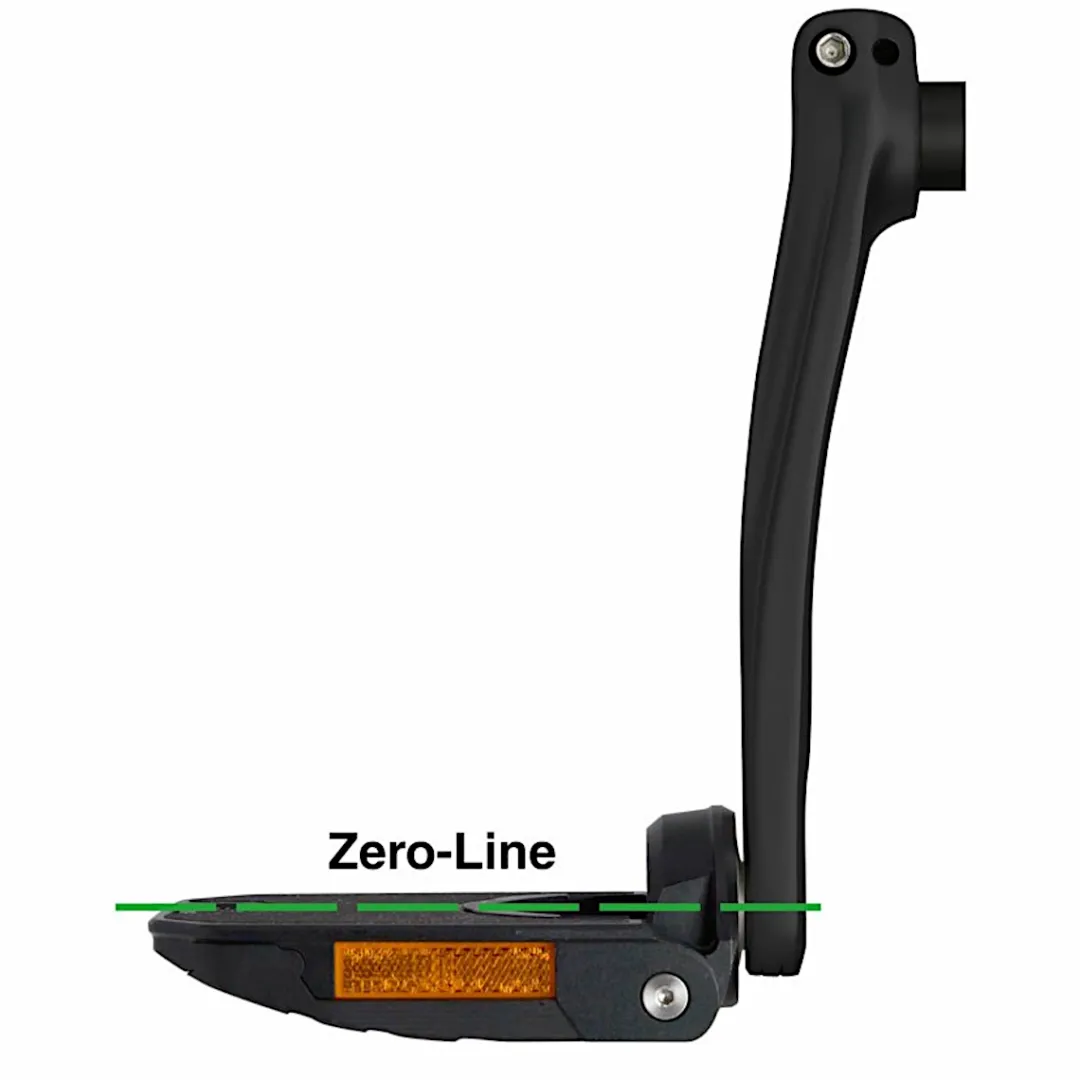

One-sided tread surface at axis height (zero line)
Non-slip 3M grip tape pedalling surface
With reflectors on both sides
Rounded pedal underside
Approved for all licence-free bicycles according to the German road traffic regulations (StVZO)

Technical details:
Pedal type: Folding pedal with zero line (Z-line)
Tread surface: approx. 110 x 90 mm
Pedalaxle: 9/16 inch x 20 TPI external thread with 6 mm hexagon socket
Pedal bearing: central, double-row angular contact ball bearing
Folding mechanism: with IGUS plain bearing

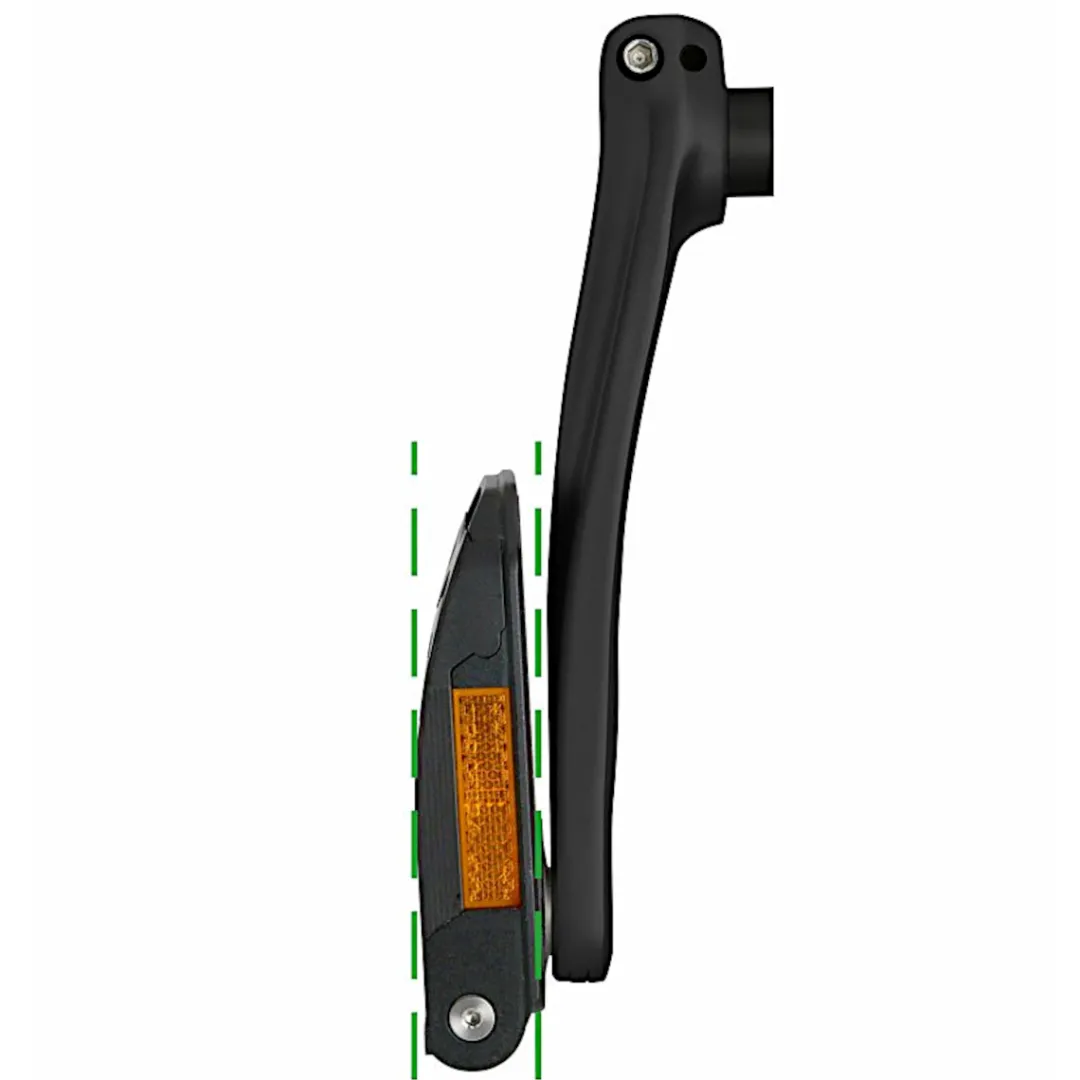

Lateral dimension when folded: approx. 28 mm
Material: Anodised aluminium (pedal body AL-6066-T6, bearing housing AL-6061-T6), chromoly steel (axle)
Dimensions: approx. 130 x 26 x 90 mm (W x H x L)
Weight: approx. 805 g (pair)

In the box:
1 pair of by,schulz Z.1 pedals

Note:
The by,schulz Z.1 pedal is NOT suitable for extreme loads and for riding profiles with jumps (downhill, freeriding, etc.)
